What is the role of the xylem in plant transport according to the Edexcel IGCSE Biology syllabus?

In the Edexcel IGCSE Biology syllabus, the xylem is responsible for the transport of water and mineral ions from the roots to the rest of the plant. It consists of hollow, tube-like structures that facilitate the upward movement of water through capillary action and transpiration pull.

How does the phloem contribute to transport in plants as per the Edexcel IGCSE curriculum?

The phloem plays a crucial role in the transport of nutrients, particularly sugars produced during photosynthesis, from the leaves to other parts of the plant. This process, known as translocation, is essential for distributing energy throughout the plant, as outlined in the Edexcel IGCSE Biology curriculum.

Can you explain the process of osmosis and its importance in cellular transport for IGCSE Biology students?

Osmosis is the movement of water molecules across a selectively permeable membrane from an area of lower solute concentration to an area of higher solute concentration. This process is vital for maintaining cell turgidity and is a key concept in cellular transport, ensuring that cells remain hydrated and function properly, as emphasized in the IGCSE Biology syllabus.

What is the significance of active transport in living organisms according to the Edexcel IGCSE Biology course?

Active transport is a process that moves molecules across cell membranes against their concentration gradient, using energy from ATP. This mechanism is crucial for absorbing nutrients like glucose and ions into cells, even when they are in lower concentrations outside the cell, as highlighted in the Edexcel IGCSE Biology course.

How does the circulatory system facilitate transport in animals, as described in the Edexcel IGCSE Biology curriculum?

The circulatory system in animals, including humans, is responsible for transporting oxygen, nutrients, and waste products throughout the body. The heart pumps blood through a network of arteries, veins, and capillaries, ensuring that all cells receive the necessary substances for survival and function, a key topic in the Edexcel IGCSE Biology curriculum.

Why is "Saying 'phloem is dead, like xylem'" a common mistake in Transport?

Why it happens: Students remember 'xylem = dead, hollow tubes' and apply the same to phloem. How to avoid it: Phloem sieve tubes are **LIVING** but have lost their nucleus and most organelles. **Companion cells** alongside provide the ATP. Xylem is dead and lignified; phloem is alive but supported by companion cells. Source: 4BI1 Examiner Reports 2023-2024

Why is "Saying transpiration is 'how plants drink water'" a common mistake in Transport?

Why it happens: Loose language about water movement. How to avoid it: Transpiration is the **LOSS of water vapour** from the plant via the stomata. It is a CONSEQUENCE of having open stomata for CO₂ uptake, not a deliberate process. The pull it generates ('transpiration stream') does help move water + ions upward, but transpiration itself is water LOST. Source: 4BI1 Examiner Reports 2024

Why is "Saying 'wind blows water out of the leaf'" a common mistake in Transport?

Why it happens: Mechanical analogy for transpiration. How to avoid it: Wind removes the **SATURATED AIR** around the stomata, maintaining a steeper **water-vapour diffusion gradient** between the leaf interior and outside air. Water still has to diffuse out as vapour — wind doesn't blow liquid water. Source: 4BI1 Examiner Reports 2023

Why is "Writing 'all arteries carry oxygenated blood, all veins carry deoxygenated blood'" a common mistake in Transport?

Why it happens: It's the default rule. How to avoid it: The **pulmonary artery** carries DEOXYGENATED blood (heart → lungs); the **pulmonary vein** carries OXYGENATED blood (lungs → heart). The rule 'arteries away from the heart' is universal; the oxygenation rule has these two exceptions. Source: 4BI1 Examiner Reports 2022-2024

Why is "Saying 'the heart pulls valves open and shut'" a common mistake in Transport?

Why it happens: Imagining valves as actively controlled gates. How to avoid it: Valves are **PASSIVE** — they open and close because of **PRESSURE differences** on either side. When the pressure on one side exceeds the pressure on the other, the valve snaps open/shut. Chordae tendineae prevent eversion but don't actively pull. Source: 4BI1 Examiner Reports 2024

Why is "Writing 'muscles need more energy during exercise'" a common mistake in Transport?

Why it happens: Everyday use of 'energy'. How to avoid it: Muscles need more **ATP** for contraction; ATP is generated by **aerobic respiration**, which needs more O₂ and glucose and produces more CO₂. Use 'ATP' and 'respiration', not 'energy'. Source: 4BI1 Examiner Reports 2023

Why is "Saying 'red blood cells have a nucleus packed with haemoglobin'" a common mistake in Transport?

Why it happens: Conflating organelle contents. How to avoid it: Mature mammalian red blood cells **LOSE their nucleus** during maturation. The vacated space is filled with haemoglobin, maximising O₂-carrying capacity. Always state 'no nucleus → more space for haemoglobin' — this is a mark-scheme keyword. Source: 4BI1 Examiner Reports 2023

Structure and Functions in Living OrganismsEdexcel IGCSE Biology (4BI1)

Transport

Work through the notes, try the practice questions, then take the quiz. The report tells you exactly what to revise next.

Previous Next

Learn this Topic

Start with the slides for the quick version, then go deeper with the full study notes.

Short Study Notes in the form of Slides

Read the notes first. If the method in a worked example clicks, you're ready for the questions.

Page 1 / 0

Detailed Study Notes

Full prose, callouts and a recap — built for A* mastery, not just a quick scan.

Take these study notes with you

Download a branded PDF — full prose, callouts, recap and memorise list for Transport, ready to print or save offline.

Transport in Plants and Humans — Pearson Edexcel International GCSE Biology 4BI1 Study Notes (2026 onwards, Spec Issue 4)

Why multicellular organisms need transport systems; xylem and phloem; transpiration and the potometer practical; the human double circulatory system, blood components and vessels; the heart, cardiac cycle and effects of exercise; risk factors for coronary heart disease. Covers spec 2.47-2.60P.

At a glance

Large organisms have small SA:V → diffusion too slow → need transport systems.
Xylem = DEAD, hollow, lignified tubes — carry water + minerals UP root → leaf.
Phloem = LIVING sieve tubes + companion cells — carry sucrose + amino acids source → sink (translocation, up OR down).
Root hair cells → large SA for water (osmosis) and mineral ions (active transport).
Transpiration = water vapour loss via stomata. Increased by ↑temperature, ↑wind, ↑light, ↓humidity.
Potometer = required practical — measures water uptake (proxy for transpiration rate).
Humans have DOUBLE circulation: pulmonary (heart ↔ lungs) + systemic (heart ↔ body).
Blood = red cells (Hb, no nucleus), white cells (phagocytes + lymphocytes), platelets (clotting), plasma (CO₂ as hydrogencarbonate, urea, glucose, hormones).
Arteries: thick wall, narrow lumen, no valves, high pressure AWAY. Veins: thinner wall, wide lumen, valves, low pressure TO heart. Capillaries: 1 cell thick → diffusion.
Heart: 4 chambers; left ventricle wall thicker than right; AV valves (tricuspid + bicuspid) + semilunar valves. 'Lub' = AV shut, 'dub' = semilunar shut.
CHD risk factors: high saturated fat, smoking, lack of exercise, obesity — narrow coronary arteries.

What you’ll learn

Mapped to the Cambridge IGCSE 4BI1 syllabus (2026 onwards).

2.47 — Understand why large multicellular organisms need specialised transport systems whereas single-celled organisms do not.
2.48 — Understand the structure and function of xylem (water + minerals) and phloem (sucrose + amino acids, translocation) in flowering plants.
2.49 — Understand the adaptations of root hair cells for the absorption of water and mineral ions.
2.50 — Understand transpiration as the loss of water vapour from leaves and how it is affected by temperature, humidity, wind speed and light intensity.
2.51 — Practical: investigate the rate of transpiration using a potometer.
2.52 — Understand the role of the heart, arteries, veins and capillaries in the human circulatory system.
2.53 — Understand the structure and function of the heart (chambers, valves, vessels) and link it to the double circulation.
2.54 — Understand the advantages of a double circulation over a single circulation.
2.55 — Describe the structures and functions of red blood cells, white blood cells, platelets and plasma.
2.56 — Describe the structures and functions of arteries, veins and capillaries.
2.57 — Understand the events of the cardiac cycle, including the role of valves.
2.58 — Understand the effect of exercise on heart rate and breathing rate.
2.59 — Practical: investigate the effect of exercise on pulse rate.
2.60P — Understand how lifestyle factors (diet, smoking, exercise) affect cardiovascular health (Paper 2 content).

Why multicellular organisms need transport systems (spec 2.47)

Diffusion is too slow over long distances when SA:V is small.

Single-celled organisms (e.g. Amoeba) have a large surface area to volume ratio (SA:V). Oxygen and nutrients can diffuse in across the cell membrane fast enough to supply every part of the cell. The distance from membrane to any organelle is tiny.

In a large multicellular organism such as a human or a tree, two problems arise:

Low SA:V. The body surface is too small relative to body volume to supply all the cells with O₂ and nutrients by diffusion.
Long distances. Most cells are far from any exchange surface. Diffusion is only fast over short distances (a few cell diameters) — it's far too slow to move substances across metres.

The solution is a specialised transport system:

A pumped fluid (blood in humans; xylem/phloem sap in plants) carries substances by mass flow (bulk movement under pressure).
Specialised exchange surfaces (lungs, root hairs, leaves) provide a high surface area for loading the transport fluid.
A pump (heart) or evaporative pull (transpiration) maintains the pressure gradient.

Together, these mean every cell — however deep inside the body — receives a fresh supply of oxygen, water and nutrients and gets its waste removed.

Small SA:V + long distances → diffusion alone too slow.
Need mass flow: a pumped fluid (blood / xylem / phloem).
Need a high-SA exchange surface (lungs / leaf / root hairs).
Heart (humans) or transpiration pull (plants) maintains the gradient.

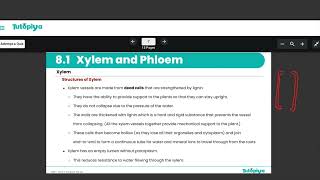

Xylem and phloem — plant transport tissues (spec 2.48-2.49)

Xylem = water UP. Phloem = sugars source → sink.

Plants have TWO transport tissues, running side by side through roots, stem and leaves in vascular bundles.

Xylem — water and dissolved mineral ions.

Made of xylem vessel elements: long cells that die at maturity.
End walls break down to form a continuous hollow tube.
Walls are reinforced with lignin (waterproof and strong), preventing collapse under the tension of the transpiration stream.
Carries water + dissolved mineral ions UP from root to leaf — one direction only.
Also provides mechanical support for the plant.

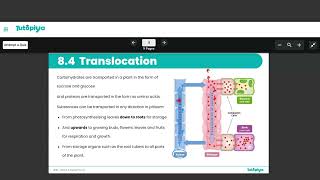

Phloem — sugars and amino acids (translocation).

Made of sieve-tube elements: living cells but with NO nucleus and few organelles.
End walls are perforated to form sieve plates — allow movement of sap between cells.
Alongside each sieve-tube cell is a companion cell packed with mitochondria; it supplies the ATP needed for active loading of sugars.
Carries dissolved sucrose and amino acids from source (a photosynthesising leaf or a starch-rich storage organ in spring) to sink (a growing root tip, fruit or storage organ).
Flow can go UP or DOWN depending on where source and sink are — bidirectional (called translocation).

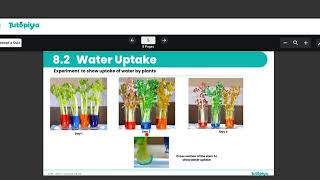

Root hair cells (spec 2.49):

Single epidermal cells with a long, narrow extension (the 'hair').
Massively increase the surface area of the root for absorption.
Water enters by osmosis (root cell sap is more concentrated than soil water).
Mineral ions enter by active transport (against the concentration gradient), using ATP from mitochondria — the cells contain many mitochondria.

Xylem = dead, hollow, lignified, one-way upward (water + minerals).
Phloem = living, sieve plates, companion cells, two-way (source → sink).
Phloem cargo = sucrose + amino acids.
Root hair cell = large SA → water osmosis + ions active transport.

See the full worked example for transport →

Transpiration and factors affecting its rate (spec 2.50-2.51)

Water vapour loss through stomata; rate depends on diffusion gradient.

Transpiration is the loss of water vapour from a plant, mainly from the leaves. It happens because the stomata MUST open to let CO₂ in for photosynthesis — and once they're open, water vapour inevitably diffuses out.

The pathway of water through the plant:

Water absorbed by root hair cells by osmosis.
Travels across root cortex to the xylem.
Pulled up the xylem by the transpiration pull (cohesion of water molecules + adhesion to xylem walls) — this is the transpiration stream.
Evaporates from the surface of mesophyll cells into the leaf air spaces.
Diffuses out of the stomata as water vapour.

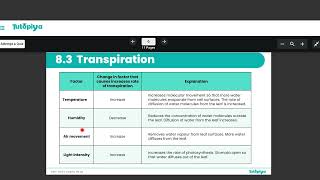

Factors affecting transpiration rate:

Factor	Effect	Why?
Temperature ↑	Rate ↑	Water evaporates faster; molecules diffuse faster
Humidity ↑	Rate ↓	Water vapour outside the leaf is high → smaller diffusion gradient
Wind speed ↑	Rate ↑	Removes saturated air at stomata → maintains steep gradient
Light intensity ↑	Rate ↑	Stomata open in light (for photosynthesis) → more vapour escapes

The common spine: anything that steepens the water-vapour diffusion gradient between leaf air spaces and the outside air speeds transpiration; anything that flattens it slows it.

Required practical — the potometer.

A potometer measures water uptake by a cut shoot. Because water lost ≈ water taken up (the shoot doesn't store much water), uptake is a proxy for transpiration rate.
Cut the shoot UNDER WATER (no air locks); seal into the potometer with Vaseline (airtight); introduce an air bubble in the capillary tube; time how long the bubble takes to move a fixed distance.
Rate of water uptake = distance / time.
Vary an environmental factor (wind, humidity, light) and keep the others constant. Repeat ×3 and mean.

Transpiration = water vapour loss, mostly via stomata.
Driven by evaporation from mesophyll → diffusion through stomata.
Steeper diffusion gradient = faster transpiration.
Potometer = water uptake as proxy for transpiration rate.

See the full worked example for transport →

The human double circulatory system (spec 2.52-2.54)

Heart pumps blood twice per circuit. Pulmonary + systemic.

Humans have a closed double circulation — closed because blood is contained within vessels at all times, and double because blood passes through the heart twice for every full circuit of the body.

Pulmonary circuit (heart ↔ lungs):

Deoxygenated blood from the body enters the right atrium via the vena cavae (superior + inferior).
Pumped into the right ventricle through the tricuspid valve.
Pumped out into the pulmonary artery → lungs.
In the alveolar capillaries, CO₂ is offloaded and O₂ is loaded.
Oxygenated blood returns to the left atrium via the pulmonary veins.

Systemic circuit (heart ↔ body):

Oxygenated blood passes from left atrium → left ventricle through the bicuspid (mitral) valve.
Pumped out into the aorta → arteries → arterioles → capillary beds in all body tissues.
In the capillary beds, O₂ and nutrients diffuse to tissue cells; CO₂ and urea diffuse back into the blood.
Deoxygenated blood returns through venules → veins → vena cavae → right atrium.

Why double circulation is better than single circulation:

Higher pressure. Blood is re-pressurised by the left ventricle AFTER the lungs. Tissues receive blood at high pressure → fast delivery. (In single circulation, e.g. a fish, blood loses pressure crossing the gill capillaries.)
No mixing. Oxygenated and deoxygenated bloods are never mixed → tissues receive blood that's fully saturated with O₂.
Higher metabolic rate. Sustains the high O₂ demand needed for endothermy (warm-bloodedness) and sustained activity.

Asymmetry of the heart. The left ventricle wall is much thicker than the right because it generates the high pressure needed to push blood around the long systemic circuit. The right only pumps to the nearby, low-resistance pulmonary circuit.

Right side handles DEOXYGENATED blood; left side handles OXYGENATED blood.
Pulmonary artery = deoxygenated (exception!); pulmonary vein = oxygenated.
Left ventricle wall thicker than right (higher pressure to body).
Double > single: higher pressure, no mixing, supports endothermy.

Blood components (spec 2.55)

RBCs, WBCs, platelets, plasma.

Blood is a fluid tissue, ~55% plasma + ~45% cells.

Red blood cells (erythrocytes):

Biconcave disc shape → large surface area : volume for fast diffusion of O₂.
No nucleus → more space for haemoglobin.
Haemoglobin (iron-containing protein) binds O₂ in lungs to form oxyhaemoglobin, releases O₂ in tissues.
Small and flexible → fit through narrow capillaries.

White blood cells (leucocytes):

Phagocytes (e.g. neutrophils, monocytes): irregular shape, lobed nucleus; engulf and digest pathogens by phagocytosis. Non-specific immune defence.
Lymphocytes: larger nucleus; produce ANTIBODIES specific to a pathogen's antigens, marking pathogens for destruction. Some become memory cells for long-term immunity (basis of vaccination).

Platelets:

Small cell fragments (no nucleus).
At a wound, they clump together to plug the gap and release clotting factors.
Soluble fibrinogen → insoluble fibrin mesh, which traps RBCs to form a clot.
The clot seals the wound, preventing further blood loss and entry of pathogens.

Plasma:

~90% water, ~10% dissolved substances.
Transports: CO₂ (mainly as hydrogencarbonate ions, HCO₃⁻), urea (liver → kidneys), glucose, amino acids, hormones, antibodies, water-soluble vitamins, heat.
Maintains osmotic balance (plasma proteins).

RBCs: biconcave, no nucleus, packed with haemoglobin.
WBCs: phagocytes engulf, lymphocytes make antibodies.
Platelets: cell fragments, form fibrin clot.
Plasma: carries CO₂ as hydrogencarbonate, urea, hormones, food.

See the full worked example for transport →

Blood vessels — arteries, veins, capillaries (spec 2.56)

Structure follows function: pressure, backflow, exchange.

Arteries.

Carry blood AWAY from the heart, at HIGH pressure.
Thick muscular wall + elastin → withstands pressure surges; elastin recoils to smooth flow between heart-beats.
Narrow lumen → maintains high pressure.
NO valves (except at the exit of the heart — semilunar valves).
Most carry oxygenated blood (exception: pulmonary artery, deoxygenated).

Veins.

Carry blood TOWARDS the heart, at LOW pressure.
Thin wall (no need to withstand pressure).
Wide lumen → low resistance to slow-moving blood.
Semilunar valves along the length → prevent backflow; vein blood is pushed along by contraction of adjacent skeletal muscles squeezing the vein.
Most carry deoxygenated blood (exception: pulmonary vein, oxygenated).

Capillaries.

Site of exchange between blood and tissue cells.
Wall is ONE cell thick (single endothelial layer) → SHORT diffusion distance.
Very narrow lumen (~7-10 μm) → RBCs squeeze through single-file → maximises contact area, slows flow → time for diffusion.
Permeable (small molecules diffuse through gaps in the wall): O₂ + glucose out to tissues; CO₂ + waste in from tissues.

The vessel chain: artery → arteriole → capillary bed → venule → vein.

Artery: thick + elastin + narrow lumen + no valves (high pressure away).
Vein: thin + wide lumen + valves (low pressure to heart).
Capillary: 1 cell thick + narrow lumen (diffusion of O₂, CO₂, nutrients).

The heart and the cardiac cycle (spec 2.53, 2.57)

Four chambers, four valves; 'lub' (AV) then 'dub' (SL).

Heart structure (4 chambers):

Chamber	Receives blood from	Sends blood to	Via valve
Right atrium	Body (via vena cavae)	Right ventricle	Tricuspid (AV)
Right ventricle	Right atrium	Lungs (via pulmonary artery)	Pulmonary semilunar
Left atrium	Lungs (via pulmonary veins)	Left ventricle	Bicuspid / mitral (AV)
Left ventricle	Left atrium	Body (via aorta)	Aortic semilunar

The left ventricle wall is much thicker than the right — pumps blood at high pressure to the entire body. The right only pumps to the nearby lungs.

Valves prevent backflow:

Atrioventricular (AV) valves — tricuspid (right) and bicuspid (left) — between atria and ventricles.
Semilunar valves — pulmonary and aortic — at the exits of the ventricles into the arteries.
Chordae tendineae ('heart strings') + papillary muscles anchor the AV valves so they don't evert into the atria during ventricular systole.

The cardiac cycle (1 heartbeat, ~0.8 s):

Diastole — all chambers relax. Blood fills atria from veins; atrial pressure rises; AV valves passively open; ventricles begin to fill.
Atrial systole — atria contract, ejecting the last ~30% of blood into the ventricles.
Ventricular systole — ventricles contract. Pressure in ventricles rises ABOVE atrial pressure → AV valves snap shut → 'LUB' (S1 sound). Pressure rises ABOVE arterial pressure → semilunar valves open → blood ejected to aorta and pulmonary artery.
Ventricular diastole — ventricles relax. Pressure falls below arterial pressure → semilunar valves snap shut → 'DUB' (S2 sound). Cycle restarts.

Valves are PASSIVE — they open and close due to pressure differences, not active muscle action.

4 chambers: RA, RV, LA, LV. Left wall thicker (high pressure).
AV valves (tricuspid/bicuspid) + semilunar valves (pulmonary/aortic).
Diastole → atrial systole → ventricular systole → ventricular diastole.
'Lub' = AV valves shutting; 'Dub' = semilunar valves shutting.
Valves are passive — open/shut by pressure differences.

See the full worked example for transport →

Effect of exercise and lifestyle on the heart (spec 2.58-2.60P)

Exercise ↑ heart rate, ↑ breathing; lifestyle factors affect CHD risk.

During exercise, muscles respire much faster, using more O₂ and producing more CO₂. The body responds by raising the rate at which O₂ is delivered and CO₂ removed.

Heart rate:

Rises from ~70 bpm at rest to 150-200 bpm peak (depending on age, fitness).
Chemoreceptors in the aortic arch and carotid arteries detect rising CO₂ / falling pH.
The cardiovascular control centre in the medulla sends impulses (sympathetic nerves) to the SAN (pacemaker) → heart rate ↑.
Adrenaline released from the adrenal glands also raises heart rate and stroke volume.

Breathing rate and depth:

Both rise. Ventilation rate (rate × depth) can increase 10-fold.
Same chemoreceptor → medulla → diaphragm and intercostal muscles signalling.
Faster, deeper breaths → faster gas exchange in alveoli → more O₂ into blood, more CO₂ out.

Required practical (spec 2.59): measure pulse rate at rest and after exercise (1 minute of step-ups). Pulse rate (the artery pulsing under the skin = one heart-beat) should rise with exercise intensity. Plot and compare individuals.

Lifestyle factors affecting cardiovascular health (Paper 2 — spec 2.60P):

Factor	Effect	Mechanism
Diet high in saturated fat	↑ CHD risk	↑ LDL cholesterol → atheroma in coronary arteries
Smoking	↑ CHD risk	Nicotine raises BP; CO binds Hb reducing O₂ supply; damages endothelium
Lack of exercise	↑ CHD risk	Higher BP, higher LDL, weaker heart muscle
Obesity	↑ CHD risk	Higher BP, higher LDL
Regular aerobic exercise	↓ CHD risk	Stronger heart, lower resting HR, lower BP, better lipid profile
Healthy diet (low saturated fat, fibre)	↓ CHD risk	Lower LDL, healthier weight

Coronary heart disease (CHD) = fatty plaque (atheroma) in the coronary arteries → narrow lumen → less O₂ to heart muscle → angina (chest pain) or — if a clot completely blocks the artery — a heart attack (myocardial infarction).

Exercise: HR ↑, breathing rate AND depth ↑.
Triggered by chemoreceptors (↑CO₂) → medulla → SAN + breathing muscles.
Adrenaline raises HR for fight-or-flight.
CHD: plaque in coronary arteries → less O₂ to heart muscle.
Risk ↑ by saturated fat, smoking, inactivity, obesity.

Quick recap

Large organisms have small SA:V and long diffusion distances → need transport systems (mass flow + heart/transpiration pull).
Xylem (dead, lignified) carries water + minerals UP. Phloem (living, sieve plates + companion cells) carries sucrose + amino acids source → sink.
Transpiration = water vapour loss; rate depends on the diffusion gradient (↑temp/wind/light → ↑rate; ↑humidity → ↓rate).
Humans have a DOUBLE circulation: pulmonary (R side, lungs) + systemic (L side, body). No mixing, high pressure, supports high metabolism.
Blood = RBCs (biconcave, no nucleus, Hb), WBCs (phagocytes engulf; lymphocytes antibodies), platelets (clotting → fibrin), plasma (CO₂ as HCO₃⁻, urea, glucose, hormones).
Artery (thick + narrow lumen, no valves), Vein (thin + wide lumen, valves), Capillary (1 cell thick, exchange).
Cardiac cycle: diastole → atrial systole → ventricular systole ('LUB' AV shut) → ventricular diastole ('DUB' SL shut).
Exercise ↑ HR + breathing (chemoreceptors → medulla, adrenaline). CHD risk ↑ by saturated fat, smoking, inactivity.

Memorise this

Verbatim phrases and definitions Cambridge mark schemes credit.

Xylem = dead, lignified, hollow — water + minerals UP.
Phloem = living sieve tubes + companion cells — sucrose source → sink.
Water enters root hair cells by osmosis; mineral ions by active transport (mitochondria).
Transpiration rate ↑ by ↑temperature, ↑wind, ↑light; ↓ by ↑humidity. All via DIFFUSION GRADIENT.
Potometer = measure water UPTAKE (proxy for transpiration).
Pulmonary artery = deoxygenated; pulmonary vein = oxygenated (the two exceptions).
Left ventricle wall thicker than right (pumps to whole body).
RBCs: biconcave + no nucleus → more space for haemoglobin.
Lymphocytes make antibodies; phagocytes engulf.
Platelets → fibrinogen → fibrin mesh → clot.
Plasma carries CO₂ as hydrogencarbonate (HCO₃⁻) and urea liver → kidney.
Capillary wall = one cell thick → short diffusion distance.
Cardiac cycle: 'LUB' = AV valves shut; 'DUB' = semilunar valves shut.
Valves are PASSIVE — open/shut by pressure differences.

How it’s examined

Transport is one of the highest-yielding topics in 4BI1 — typically 10-15 marks per paper. Paper 1 (4BI1/1B): xylem vs phloem comparison (3-4 marks), blood vessel structure-function (4-6 marks), heart diagram labels (4 marks), effect of exercise (4-5 marks). Paper 2 (4BI1/2B): the potometer required practical (6-8 marks), cardiac cycle in detail (6 marks), CHD risk factors with mechanisms (6 marks). Mark-scheme keywords examiner reports flag most often: lignin, companion cells, diffusion gradient, complementary (NEVER for vessels — that's enzymes!), hydrogencarbonate, no nucleus → more space for haemoglobin, chordae tendineae, atheroma / plaque. Avoid 'killed by heat' and 'plants drink water'.

Sources: Pearson Edexcel International GCSE Biology 4BI1 specification — Issue 4, September 2024 (valid for 2026 onwards); Pearson Edexcel 4BI1 Examiner Reports 2022-2024; 4BI1/1B May/Jun 2024 question paper and mark scheme; 4BI1/1B January 2024 question paper and mark scheme; 4BI1/2B May/Jun 2024 question paper and mark scheme; 4BI1/2B January 2024 question paper and mark scheme. Last reviewed 2026-05-12.

Master this Topic

Worked examples, formulae, definitions and the mistakes examiners flag — everything you need to push from a pass to an A*.

Take this whole topic with you

Download a branded revision sheet — worked examples, formulae, definitions and common mistakes for Transport, ready to print or save as PDF.

Step-by-step worked examples — Transport

Step-by-step solutions to past-paper-style questions on transport, written exactly the way a tutor would explain them at the board.

1Comparing xylem and phloem (4 marks, Paper 1)
Core• Adapted from 4BI1/1B May/Jun 2024 Q4(a)• xylem, phloem, spec-2.47, spec-2.48
Question
Compare the structure and function of xylem vessels and phloem sieve tubes in flowering plants. (4 marks)
Step-by-step solution
1. Step 1
  Xylem cells are dead; phloem sieve-tube cells are living (B1). Xylem vessel elements lose their cytoplasm and end walls to form continuous hollow tubes. Phloem sieve tubes have living (but enucleate) cytoplasm and perforated sieve-plate end walls.
2. Step 2
  Xylem walls are lignified; phloem walls are NOT (B1). Lignin makes xylem walls waterproof and strong, preventing collapse under the tension of the transpiration stream.
3. Step 3
  Xylem transports water and dissolved mineral ions; phloem transports sugars/sucrose and amino acids (B1). Xylem moves the products of root absorption; phloem moves the products of photosynthesis (translocation).
4. Step 4
  Xylem flow is one-way upward (root → leaf); phloem flow can be up OR down (source → sink) (B1). Phloem direction depends on where the source (e.g. leaf) and sink (e.g. root, fruit, growing tip) are located.
Answer
Xylem = dead, lignified, hollow tubes carrying water + mineral ions UP from roots to leaves. Phloem = living sieve tubes with companion cells, no lignin, carrying sucrose + amino acids from source to sink in either direction (translocation).
Examiner tip
Mark scheme awards comparative marks only when BOTH tissues are named per point. Examiner reports flag candidates who say 'phloem is dead' (wrong — sieve tubes are LIVING but lack a nucleus) and who confuse 'minerals' with 'sugars' for phloem.
2Effect of environmental factors on transpiration (5 marks, Paper 1)
Core• Adapted from 4BI1/1B January 2024 Q5(c)• transpiration, spec-2.50, spec-2.51
Question
Explain how increasing temperature, wind speed and humidity each affect the rate of transpiration from a leafy shoot. (5 marks)
Step-by-step solution
1. Step 1
  Temperature ↑ → transpiration rate ↑ (B1). Higher temperature gives water molecules more kinetic energy, so they evaporate faster from the mesophyll cell surfaces into the air spaces of the leaf.
2. Step 2
  Higher temperature also increases the rate of diffusion of water vapour out of the stomata (B1). Concentration of water vapour in the leaf air spaces rises, increasing the diffusion gradient.
3. Step 3
  Wind speed ↑ → transpiration rate ↑ (B1). Wind blows away saturated air from around the stomata, maintaining a steep water-vapour concentration gradient between the leaf interior and outside air. Faster diffusion out.
4. Step 4
  Humidity ↑ → transpiration rate ↓ (B1). When surrounding air is humid, water-vapour concentration outside the leaf is high, so the gradient between leaf air spaces and atmosphere is SHALLOWER → slower diffusion of water vapour out.
5. Step 5
  All three factors act via the water-vapour DIFFUSION GRADIENT between leaf air spaces and atmosphere (B1). Anything that steepens the gradient (heat, wind) speeds transpiration; anything that flattens it (humidity) slows transpiration.
Answer
Temperature ↑ → faster evaporation and faster diffusion → higher rate. Wind ↑ → removes humid air at the stomata → steeper gradient → higher rate. Humidity ↑ → smaller gradient between leaf and air → lower rate.
Examiner tip
Edexcel rewards the keyword DIFFUSION GRADIENT explicitly. Examiner reports flag candidates who say 'wind blows the water away' (wrong — wind removes saturated AIR, the water still has to diffuse out). Always link the factor → gradient → rate.
3Potometer required practical (6 marks, Paper 2)
Extended• Adapted from 4BI1/2B May/Jun 2024 Q3• required practical, potometer, transpiration, Paper 2
Question
Describe how a student could use a potometer to investigate the effect of wind speed on the rate of transpiration from a leafy shoot. (6 marks)
Step-by-step solution
1. Step 1
  Cut the shoot under water and assemble the potometer under water (B1). Cutting under water prevents air bubbles entering the xylem (an air lock would stop water uptake).
2. Step 2
  Seal the shoot into the potometer with petroleum jelly / Vaseline (B1). Make sure the apparatus is airtight — any air leak would let water in and falsely lower the reading.
3. Step 3
  Introduce a single air bubble into the capillary tube (M1). Lift the end of the capillary out of the reservoir water briefly, then return to a beaker so a bubble forms at the open end.
4. Step 4
  Record the time taken for the bubble to move a fixed distance, e.g. 50 mm (A1). Rate of water uptake = distance / time. Water uptake is a PROXY for transpiration rate (assumes the shoot doesn't store water).
5. Step 5
  Vary wind speed using a fan at set distances (independent variable) (B1). Keep temperature, humidity, light intensity, leaf surface area constant (control variables). Reset the bubble using the reservoir tap between readings.
6. Step 6
  Repeat each wind speed three times and calculate the mean rate (B1). Plot a graph of mean rate of water uptake (mm/min) against wind speed.
Answer
Cut shoot under water; assemble potometer under water; seal with Vaseline; introduce a bubble; time the bubble across a fixed distance; rate = distance / time. Vary wind speed with a fan (IV); keep temperature, humidity, light and leaf area constant (CVs). Repeat × 3 and mean.
Examiner tip
Mark scheme requires (i) airtight apparatus (Vaseline / under water assembly), (ii) the bubble + measurement method, (iii) the IV / DV / CVs split and (iv) repeats and mean. Examiner reports praise candidates who explicitly state 'water uptake is a proxy for transpiration'. Common mark loss: confusing IV with what's measured (rate is the DV, not the IV).
4Comparing artery, vein and capillary (6 marks, Paper 1)
Core• Adapted from 4BI1/1B May/Jun 2024 Q6• blood vessels, spec-2.55
Question
Describe THREE structural differences between arteries and veins and explain how each adaptation suits the function of the vessel. (6 marks)
Step-by-step solution
1. Step 1
  Arteries have thick muscular walls with elastin; veins have thinner walls (B1). Arteries carry blood at HIGH pressure away from the heart — the thick wall withstands the pressure and the elastin recoils to smooth the surges.
2. Step 2
  Function link (B1). Veins return blood at LOW pressure to the heart, so they don't need a thick muscular wall.
3. Step 3
  Arteries have a NARROW lumen; veins have a WIDE lumen (B1). Narrow lumen in arteries maintains high pressure. Wide lumen in veins reduces resistance to blood flow at low pressure.
4. Step 4
  Function link (B1). Wide lumen helps low-pressure blood return more easily; narrow lumen keeps arterial pressure high enough to perfuse organs.
5. Step 5
  Veins contain SEMILUNAR VALVES; arteries do NOT (except at the exit of the heart) (B1). Valves prevent backflow of blood between heart-beats.
6. Step 6
  Function link (B1). Vein blood is low-pressure and relies on contraction of nearby skeletal muscles to be squeezed along; valves stop it flowing backwards. Capillaries (extension) have walls only ONE cell thick → short diffusion distance for O₂, CO₂, nutrients and waste between blood and tissue cells.
Answer
Arteries: thick wall + elastin (withstands high pressure); narrow lumen (maintains pressure); no valves. Veins: thinner wall (low pressure); wider lumen (low resistance); semilunar valves prevent backflow. Capillaries: single-cell-thick endothelium for fast diffusion; narrow lumen forces RBCs single-file (max surface contact).
Examiner tip
Mark scheme uses paired marks (structure + function) per vessel. Examiner reports flag candidates who simply describe structures without linking to pressure or backflow. Use the spine: PRESSURE → wall / lumen size; BACKFLOW → valves; DIFFUSION → wall thickness.
5The cardiac cycle and heart sounds (5 marks, Paper 2)
Extended• Adapted from 4BI1/2B January 2024 Q4• heart, cardiac cycle, spec-2.57, Paper 2
Question
Describe the events of one cardiac cycle, naming the chambers, the valves involved and the sounds 'lub' and 'dub'. (5 marks)
Step-by-step solution
1. Step 1
  Diastole — heart relaxed (B1). Both atria and ventricles relax. Blood from the body enters the right atrium (via the vena cavae) and from the lungs enters the left atrium (via the pulmonary veins). Atrioventricular (AV) valves OPEN passively.
2. Step 2
  Atrial systole (B1). The atria contract, pushing remaining blood through the open AV valves (tricuspid on the right, bicuspid/mitral on the left) into the ventricles. Semilunar valves still CLOSED.
3. Step 3
  Ventricular systole — 'LUB' (S1) (B1). Ventricles contract; pressure inside ventricles rises ABOVE atrial pressure → AV valves snap shut → first heart sound 'LUB'. Chordae tendineae prevent valves everting into atria.
4. Step 4
  Blood is forced out — semilunar valves open (B1). Ventricular pressure exceeds arterial pressure → semilunar valves at the base of the aorta and pulmonary artery open → blood is ejected from the left ventricle to the aorta (body) and from the right ventricle to the pulmonary artery (lungs).
5. Step 5
  Ventricular diastole — 'DUB' (S2) (B1). Ventricles relax; ventricular pressure falls BELOW arterial pressure → semilunar valves snap shut to prevent backflow → second heart sound 'DUB'. The cycle then repeats.
Answer
Diastole — atria and ventricles fill. Atrial systole — atria contract → ventricles fill. Ventricular systole — ventricles contract; AV valves shut ('LUB'); semilunar valves open; blood ejected to aorta and pulmonary artery. Ventricular diastole — semilunar valves shut ('DUB'); cycle restarts.
Examiner tip
Edexcel mark scheme accepts AV valves named as 'tricuspid' (right) and 'bicuspid / mitral' (left). 'Lub' is the AV valves shutting, 'dub' is the semilunar valves shutting. Examiner reports stress that candidates must link valve activity to PRESSURE changes (valves are pressure-driven, not actively pulled).

Model Answers — Transport

High-scoring sample answers for transport on the Pearson Edexcel IGCSE 4BI1 paper, with examiner-style notes mapping each response to the mark scheme and assessment objectives.

Question
Adapted from 4BI1/2B May/Jun 2024 Q2(a)5 marks
Explain why large multicellular organisms such as humans need a specialised transport system whereas single-celled organisms such as Amoeba do not. (5 marks)
Model answer
Single-celled organisms such as Amoeba are very small and have a large surface area to volume ratio. Oxygen, carbon dioxide, nutrients and waste can therefore be exchanged with the surrounding water by simple diffusion across the cell membrane, and the distance from the membrane to any part of the cytoplasm is short. Diffusion alone is fast enough to keep every part of the cell supplied.

In contrast, large multicellular organisms such as humans have a small surface area to volume ratio. The body surface (skin) is far too small to supply the metabolic demands of every internal cell. Most cells are also a long way from the body surface, so diffusion would be far too slow to deliver oxygen and nutrients or remove carbon dioxide and urea.

To solve this, large organisms have evolved specialised transport systems:

A mass-flow circulatory system (blood + heart + vessels in humans; xylem and phloem in plants).

A specialised gas-exchange surface (lungs in humans; leaves in plants) with a high surface area to load oxygen quickly.

A pump (the heart) to maintain a pressure gradient so substances move along bulk flow gradients rather than relying on diffusion across long distances.

The combination of large surface-area exchange surfaces + mass-flow transport ensures every cell, however deep in the body, gets a fresh supply of oxygen and nutrients and has its waste products removed.
Why this scores
Mark scheme typically credits: (1) SA:V argument for small organisms; (2) diffusion sufficient over small distances; (3) low SA:V in large organisms; (4) diffusion too slow over long distances; (5) need for mass-flow / pumped circulation. Examiner reports flag candidates who just say 'they're bigger so they need a heart' without quantifying via SA:V or diffusion distance.
Question
Adapted from 4BI1/1B May/Jun 2024 Q56 marks
Describe the human double circulatory system and explain the advantages of having a double circulation rather than a single circulation. (6 marks)
Model answer
The human circulatory system is a double circulation: blood passes through the heart twice for every complete circuit of the body.

Pulmonary circulation (heart ↔ lungs). The right ventricle pumps deoxygenated blood into the pulmonary artery to the lungs. In the lungs, blood loses CO₂ and picks up O₂ in the alveoli. Oxygenated blood returns to the left atrium via the pulmonary vein.

Systemic circulation (heart ↔ rest of body). The left ventricle pumps oxygenated blood at high pressure into the aorta and out to all body tissues. Tissues take up O₂ and offload CO₂ and urea. Deoxygenated blood returns to the right atrium via the vena cavae (superior and inferior).

Advantages of double circulation over single circulation:

Higher pressure to the systemic circuit. The blood is re-pressurised by the left ventricle AFTER passing through the lungs. In a single circulation (e.g. fish) the blood loses pressure crossing the gill capillaries and reaches the body slowly. In a double circulation, the body receives blood at high pressure → fast delivery to active tissues.

Oxygenated and deoxygenated blood do NOT mix. Two pumps in series keep the two bloods completely separate, so blood reaching the body is always fully oxygenated (~98% Hb saturation). This maximises the oxygen available for respiration in muscles, brain etc.

Higher metabolic rate possible. Because muscles get a richer, faster oxygen supply, mammals (and birds) can maintain a higher metabolic rate, enabling endothermy and sustained activity.

The left ventricle wall is much thicker than the right because it has to generate enough pressure to push blood through the much longer systemic circuit; the right only has to pump to the nearby, low-resistance lungs.
Why this scores
Mark scheme: (1) blood passes through heart twice; (2) name pulmonary + systemic circuits; (3) right ventricle → lungs; (4) left ventricle → body; (5) higher pressure / faster delivery; (6) no mixing of oxygenated and deoxygenated bloods. Examiner reports praise candidates who explicitly compare with single circulation (fish) and note the asymmetry in ventricle wall thickness.
Question
Adapted from 4BI1/2B January 2024 Q58 marks
Describe the FOUR main components of human blood and state the function of each. (8 marks)
Model answer
Human blood is a fluid tissue made up of four main components: red blood cells, white blood cells, platelets and plasma.

1. Red blood cells (erythrocytes).

Biconcave disc shape → large surface area to volume ratio for fast O₂ uptake and release.

No nucleus in mature cells → more space for haemoglobin.

Contain the iron-containing pigment haemoglobin, which binds O₂ in the lungs to form oxyhaemoglobin and releases O₂ in respiring tissues.

Also help carry a small fraction of CO₂.

2. White blood cells (leucocytes) — TWO types.

Phagocytes (e.g. neutrophils): irregularly shaped with a lobed nucleus; they engulf and digest pathogens by phagocytosis. Non-specific defence.

Lymphocytes: large rounded nucleus; produce ANTIBODIES that bind specifically to antigens on pathogens, marking them for destruction. Provide specific immunity. Also produce memory cells for long-term immunity.

3. Platelets.

Small cell fragments with no nucleus.

Initiate blood clotting at wound sites: clump together to form a plug, then release clotting factors that convert soluble fibrinogen → insoluble fibrin mesh, which traps red cells to form a clot. The clot seals the wound, preventing further blood loss and entry of pathogens.

4. Plasma.

Pale yellow liquid (~55% of blood volume); ~90% water.

Transports: dissolved CO₂ (mainly as hydrogencarbonate ions, HCO₃⁻), urea (from liver to kidneys), digested food products (glucose, amino acids), hormones, antibodies, water-soluble vitamins, and heat (helping thermoregulation).

Also maintains the osmotic balance of the blood (plasma proteins).
Why this scores
Mark scheme: B1 for naming each component + B1 for function = 2 marks × 4 components = 8. Examiner reports specifically reward 'no nucleus → more space for haemoglobin' (mark-scheme keyword), 'phagocytes engulf', 'lymphocytes produce antibodies', 'platelets → fibrin → clot' and 'plasma carries CO₂ as hydrogencarbonate'. Avoid generic 'carries things' for plasma — name at least two substances.
Question
Adapted from 4BI1/2B May/Jun 2024 Q66 marks
Describe and explain the changes in heart rate and breathing rate during vigorous exercise, and explain why these changes occur. (6 marks)
Model answer
During vigorous exercise, both heart rate and breathing rate increase significantly compared with rest.

Changes observed:

Heart rate rises from ~70 beats/min (rest) up to ~150-200 beats/min (peak exercise) — depending on fitness and age.

Breathing rate rises from ~12-15 breaths/min (rest) up to ~30-40 breaths/min, and the depth of each breath increases too.

Why heart rate increases:

During exercise, muscle cells respire more rapidly to release ATP, so they need MORE oxygen and glucose and produce MORE carbon dioxide.

The increased CO₂ lowers blood pH (CO₂ + H₂O → H₂CO₃ → H⁺ + HCO₃⁻).

Chemoreceptors in the aorta and carotid arteries detect the fall in pH (and rise in CO₂) and signal the cardiovascular control centre in the medulla of the brain.

The medulla sends impulses (via the sympathetic nervous system) to the SAN (pacemaker) of the heart, increasing heart rate.

Adrenaline released from the adrenal glands also raises heart rate.

A faster, stronger heart-beat delivers more oxygenated blood to working muscles and removes CO₂ faster.

Why breathing rate and depth increase:

The same chemoreceptors signal the breathing control centre in the medulla.

Impulses are sent to the intercostal muscles and diaphragm to contract more rapidly and more forcefully → faster, deeper breaths.

This delivers more O₂ to the alveoli for diffusion into the blood and removes CO₂ faster.

Net effect. Cardiac output (heart rate × stroke volume) and pulmonary ventilation both rise, increasing the rate of gas exchange and the rate at which oxygen reaches the respiring muscles — so they can sustain a high rate of aerobic respiration.
Why this scores
Mark scheme: (1) heart rate ↑; (2) breathing rate AND depth ↑; (3) muscles respire more / need more O₂ / produce more CO₂; (4) chemoreceptors detect ↑CO₂ / ↓pH; (5) medulla / adrenaline; (6) faster delivery of O₂ / removal of CO₂. Examiner reports flag students who say 'muscles need more energy' (REJECT — muscles need more ATP / oxygen for respiration; energy isn't made). Always use 'aerobic respiration' as the underlying process.
Question
Adapted from 4BI1/1B May/Jun 2024 Q6(c)6 marks
Describe FOUR lifestyle factors that increase the risk of coronary heart disease (CHD), and explain the biological mechanism by which each increases risk. (6 marks)
Model answer
Coronary heart disease (CHD) occurs when the coronary arteries that supply the heart muscle become narrowed by fatty deposits (atheroma / plaque). Reduced blood flow starves the cardiac muscle of oxygen, leading to angina or — if the artery is completely blocked — a heart attack (myocardial infarction).

Four lifestyle factors that raise the risk:

1. Diet high in saturated fat and cholesterol.

Excess saturated fat raises the level of low-density lipoprotein (LDL) cholesterol in the blood.

LDL deposits in artery walls, building up atheromatous plaques that narrow the lumen of the coronary arteries.

Restricted blood flow → less O₂ to heart muscle → angina / MI.

2. Smoking.

Nicotine raises heart rate and blood pressure, increasing strain on the heart.

Carbon monoxide binds to haemoglobin (more strongly than O₂) forming carboxyhaemoglobin, reducing the blood's O₂-carrying capacity.

Smoking also damages the endothelium of artery walls, promoting plaque formation.

3. Lack of exercise.

Sedentary lifestyle is associated with higher blood pressure, higher LDL, lower HDL and obesity.

Less effective heart muscle → lower stroke volume.

Combined effects increase plaque deposition and the workload on the heart.

4. Excess alcohol intake / obesity / chronic stress.

Excess alcohol raises blood pressure and contributes to obesity.

Obesity raises blood pressure and LDL, narrowing arteries.

Chronic stress (long-term high adrenaline / cortisol) raises blood pressure and damages endothelium.

The prevention strategy is the inverse of these factors: a diet low in saturated fat, no smoking, regular aerobic exercise, healthy weight and stress management.
Why this scores
Mark scheme: 4 risk factors named (max 4) + biological mechanism for each (max 4) capped at total 6. Examiner reports reward explicit mention of 'plaque / atheroma narrows coronary arteries' and 'less oxygen to heart muscle'. Just naming factors without a mechanism scores half. 'High cholesterol' alone is insufficient — link to LDL → plaque → narrowed lumen.

Key Definitions and Keywords — Transport

Definitions to memorise and the exact keywords mark schemes credit for transport answers — sharpened from recent examiner reports for the 2026 Pearson Edexcel IGCSE 4BI1 sitting.

Xylem
Examiner keyword
A plant tissue made of dead, hollow, lignified cells (xylem vessels) that transports water and dissolved mineral ions upward from roots to leaves and provides mechanical support.
Phloem
Examiner keyword
A plant tissue made of living sieve-tube elements (with perforated end walls called sieve plates) and companion cells, which transports dissolved sugars (sucrose) and amino acids from source (leaves) to sink (roots, fruits, growing tips). Bidirectional movement is called translocation.
Transpiration
Examiner keyword
The loss of water vapour from a plant, mainly by evaporation from mesophyll cell surfaces into leaf air spaces and diffusion out through the stomata. Drives the upward movement of water in xylem (transpiration stream).
Root hair cell
Examiner keyword
A specialised epidermal cell of a plant root with a long, narrow projection (hair) that increases surface area for absorption of water (by osmosis) and mineral ions (by active transport) from the soil.
Double circulation
Examiner keyword
A circulatory system in which blood passes through the heart twice for each complete circuit of the body: once through the pulmonary circuit (heart ↔ lungs) and once through the systemic circuit (heart ↔ body). Allows higher pressure delivery and prevents mixing of oxygenated and deoxygenated blood.
Haemoglobin
Examiner keyword
An iron-containing protein in red blood cells. It binds oxygen in the lungs (forming oxyhaemoglobin) and releases it in respiring tissues. Each haemoglobin molecule binds four O₂ molecules.
Artery
Examiner keyword
A blood vessel with a thick muscular wall containing elastin and a narrow lumen, carrying blood AWAY from the heart at high pressure. Mostly oxygenated, except the pulmonary artery (deoxygenated).
Vein
Examiner keyword
A blood vessel with a thinner wall, wide lumen and semilunar valves preventing backflow, carrying blood TO the heart at low pressure. Mostly deoxygenated, except the pulmonary vein (oxygenated).
Capillary
Examiner keyword
A microscopic blood vessel with a wall one cell thick (single endothelial layer) and a very narrow lumen. Sites of exchange of O₂, CO₂, nutrients and waste between blood and tissue cells.
Cardiac cycle
Examiner keyword
The sequence of events in one heartbeat: diastole (relaxation, filling), atrial systole (atrial contraction), ventricular systole (ventricular contraction, ejection through semilunar valves). Heart sounds 'lub' (AV valves shutting) and 'dub' (semilunar valves shutting).
Coronary heart disease (CHD)
Examiner keyword
Narrowing of the coronary arteries (which supply heart muscle with oxygenated blood) by fatty plaque deposits (atheroma), reducing blood flow to cardiac muscle. Can lead to angina or a heart attack (myocardial infarction).

Common Mistakes and Misconceptions — Transport

The traps other students keep falling into on transport questions — taken from recent Pearson Edexcel IGCSE 4BI1 examiner reports and mark schemes — and how to avoid them.

✕Saying 'phloem is dead, like xylem'
4BI1 Examiner Reports 2023-2024
Why it happens
Students remember 'xylem = dead, hollow tubes' and apply the same to phloem.
How to avoid it
Phloem sieve tubes are LIVING but have lost their nucleus and most organelles. Companion cells alongside provide the ATP. Xylem is dead and lignified; phloem is alive but supported by companion cells.
✕Saying transpiration is 'how plants drink water'
4BI1 Examiner Reports 2024
Why it happens
Loose language about water movement.
How to avoid it
Transpiration is the LOSS of water vapour from the plant via the stomata. It is a CONSEQUENCE of having open stomata for CO₂ uptake, not a deliberate process. The pull it generates ('transpiration stream') does help move water + ions upward, but transpiration itself is water LOST.
✕Saying 'wind blows water out of the leaf'
4BI1 Examiner Reports 2023
Why it happens
Mechanical analogy for transpiration.
How to avoid it
Wind removes the SATURATED AIR around the stomata, maintaining a steeper water-vapour diffusion gradient between the leaf interior and outside air. Water still has to diffuse out as vapour — wind doesn't blow liquid water.
✕Writing 'all arteries carry oxygenated blood, all veins carry deoxygenated blood'
4BI1 Examiner Reports 2022-2024
Why it happens
It's the default rule.
How to avoid it
The pulmonary artery carries DEOXYGENATED blood (heart → lungs); the pulmonary vein carries OXYGENATED blood (lungs → heart). The rule 'arteries away from the heart' is universal; the oxygenation rule has these two exceptions.
✕Saying 'the heart pulls valves open and shut'
4BI1 Examiner Reports 2024
Why it happens
Imagining valves as actively controlled gates.
How to avoid it
Valves are PASSIVE — they open and close because of PRESSURE differences on either side. When the pressure on one side exceeds the pressure on the other, the valve snaps open/shut. Chordae tendineae prevent eversion but don't actively pull.
✕Writing 'muscles need more energy during exercise'
4BI1 Examiner Reports 2023
Why it happens
Everyday use of 'energy'.
How to avoid it
Muscles need more ATP for contraction; ATP is generated by aerobic respiration, which needs more O₂ and glucose and produces more CO₂. Use 'ATP' and 'respiration', not 'energy'.
✕Saying 'red blood cells have a nucleus packed with haemoglobin'
4BI1 Examiner Reports 2023
Why it happens
Conflating organelle contents.
How to avoid it
Mature mammalian red blood cells LOSE their nucleus during maturation. The vacated space is filled with haemoglobin, maximising O₂-carrying capacity. Always state 'no nucleus → more space for haemoglobin' — this is a mark-scheme keyword.

Practice questions

Exam-style questions with step-by-step worked solutions. Try one before checking the method.

Past paper style quiz

Get a report showing which sub-topics you've nailed and which ones still need work.

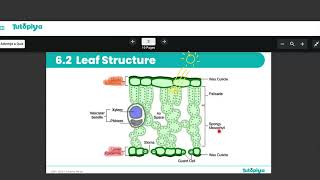

Video lesson

Short walkthrough of the concepts students most often get stuck on.

Transport — frequently asked questions

The things students keep getting wrong in this sub-topic, answered.

Factor

Effect

Why?

Temperature ↑

Rate ↑

Water evaporates faster; molecules diffuse faster

Humidity ↑

Rate ↓

Water vapour outside the leaf is high → smaller diffusion gradient

Wind speed ↑

Rate ↑

Removes saturated air at stomata → maintains steep gradient

Light intensity ↑

Rate ↑

Stomata open in light (for photosynthesis) → more vapour escapes

Chamber

Receives blood from

Sends blood to

Via valve

Right atrium

Body (via vena cavae)

Right ventricle

Tricuspid (AV)

Right ventricle

Right atrium

Lungs (via pulmonary artery)

Pulmonary semilunar

Left atrium

Lungs (via pulmonary veins)

Left ventricle

Bicuspid / mitral (AV)

Left ventricle

Left atrium

Body (via aorta)

Aortic semilunar

Factor

Effect

Mechanism

Diet high in saturated fat

↑ CHD risk

↑ LDL cholesterol → atheroma in coronary arteries

Smoking

↑ CHD risk

Nicotine raises BP; CO binds Hb reducing O₂ supply; damages endothelium

Lack of exercise

↑ CHD risk

Higher BP, higher LDL, weaker heart muscle

Obesity

↑ CHD risk

Higher BP, higher LDL

Regular aerobic exercise

↓ CHD risk

Stronger heart, lower resting HR, lower BP, better lipid profile

Healthy diet (low saturated fat, fibre)

↓ CHD risk

Lower LDL, healthier weight

The human circulatory system is a double circulation: blood passes through the heart twice for every complete circuit of the body.

Pulmonary circulation (heart ↔ lungs). The right ventricle pumps deoxygenated blood into the pulmonary artery to the lungs. In the lungs, blood loses CO₂ and picks up O₂ in the alveoli. Oxygenated blood returns to the left atrium via the pulmonary vein.

Systemic circulation (heart ↔ rest of body). The left ventricle pumps oxygenated blood at high pressure into the aorta and out to all body tissues. Tissues take up O₂ and offload CO₂ and urea. Deoxygenated blood returns to the right atrium via the vena cavae (superior and inferior).

Advantages of double circulation over single circulation:

Higher pressure to the systemic circuit. The blood is re-pressurised by the left ventricle AFTER passing through the lungs. In a single circulation (e.g. fish) the blood loses pressure crossing the gill capillaries and reaches the body slowly. In a double circulation, the body receives blood at high pressure → fast delivery to active tissues.
Oxygenated and deoxygenated blood do NOT mix. Two pumps in series keep the two bloods completely separate, so blood reaching the body is always fully oxygenated (~98% Hb saturation). This maximises the oxygen available for respiration in muscles, brain etc.
Higher metabolic rate possible. Because muscles get a richer, faster oxygen supply, mammals (and birds) can maintain a higher metabolic rate, enabling endothermy and sustained activity.

The left ventricle wall is much thicker than the right because it has to generate enough pressure to push blood through the much longer systemic circuit; the right only has to pump to the nearby, low-resistance lungs.

Transport

Short Study Notes in the form of Slides

Detailed Study Notes

What you’ll learn

How it’s examined

1Comparing xylem and phloem (4 marks, Paper 1)

2Effect of environmental factors on transpiration (5 marks, Paper 1)

3Potometer required practical (6 marks, Paper 2)

4Comparing artery, vein and capillary (6 marks, Paper 1)

5The cardiac cycle and heart sounds (5 marks, Paper 2)

Xylem

Phloem

Transpiration

Root hair cell

Double circulation

Haemoglobin

Artery

Vein

Capillary

Cardiac cycle

Coronary heart disease (CHD)

✕Saying 'phloem is dead, like xylem'

✕Saying transpiration is 'how plants drink water'

✕Saying 'wind blows water out of the leaf'

✕Writing 'all arteries carry oxygenated blood, all veins carry deoxygenated blood'

✕Saying 'the heart pulls valves open and shut'

✕Writing 'muscles need more energy during exercise'

✕Saying 'red blood cells have a nucleus packed with haemoglobin'

Practice questions

Past paper style quiz

Assess your understanding

Video lesson

Transport — frequently asked questions

Transport

Short Study Notes in the form of Slides

Detailed Study Notes

What you’ll learn

How it’s examined

1Comparing xylem and phloem (4 marks, Paper 1)

2Effect of environmental factors on transpiration (5 marks, Paper 1)

3Potometer required practical (6 marks, Paper 2)

4Comparing artery, vein and capillary (6 marks, Paper 1)

5The cardiac cycle and heart sounds (5 marks, Paper 2)

Xylem

Phloem

Transpiration

Root hair cell

Double circulation

Haemoglobin

Artery

Vein

Capillary

Cardiac cycle

Coronary heart disease (CHD)

✕Saying 'phloem is dead, like xylem'

✕Saying transpiration is 'how plants drink water'

✕Saying 'wind blows water out of the leaf'

✕Writing 'all arteries carry oxygenated blood, all veins carry deoxygenated blood'
